FLOW METERS

SERIES FLOWMETERS Shunt current meter for measuring large flow rates. Body in carbon steel, stainless steel or PVC. Measuring tube in transparent anti-shock methacrylate. For standard nominal diameters up to DN-200. Maximum test pressure with metal structure 16 bar. With plastic structure 10 bar. Accuracy: +/- 5% PD Series: for installation in vertical/horizontal pipe regardless of flow direction. OP Series: To be installed on horizontal pipes only.

Threaded flow meters in pipes with needle valve regulation tap. Made of acrylic material with a conical measuring hole. Float made of AISI 316, nylon, glass or aluminium on request. For 3/8" or 1/4" threaded diameters. Maximum pressure 10 bar (25 bar, 40 bar or 64 bar on request). Accuracy: +/- 5% Connected to square, side or front.

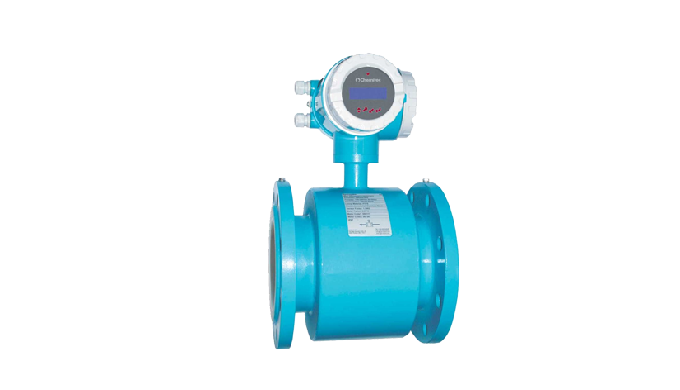

ELECTROMAGNETIC FLOWMETERS SERIES Electromagnetic flow meter. Compact version or with remote electronics. Measuring tube coated in rubber or PTFE Electrodes in AISI-316 or Hastelloy stainless steel Connection flange connection UNI 2223 EN Degree of protection IP-67 On request with MODBUS communication protocol (via RS485) S103 S SERIES * For sanitary applications. S103 N SERIES* For general industry uses.
