Laser Marker, Fiber Laser Marking System, Laser Marking System and Fiber Laser Marking Machine

A class 1 laser system for small and medium-sized productions. The external protection structure of the UBI Basic takes up very little space, ideal for placing it on a workbench. The loading door opening and closing system is manual with a locking system, while the internal Z-axis is electric and is operated by a button. Large certified inspection windows on three sides provide a complete view of the internal loading chamber and marking operations. UBI Basic is a Class 1 laser safety device.

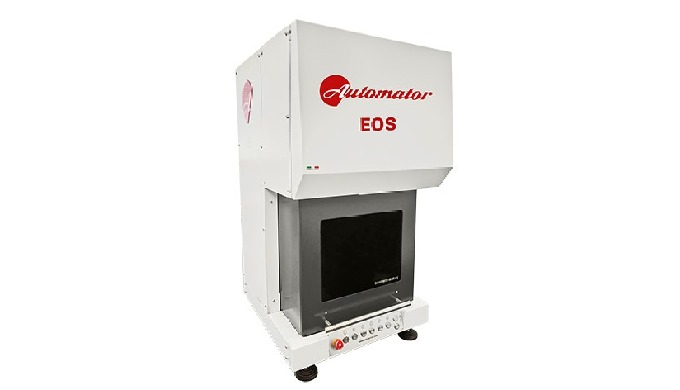

Class 1 laser system for small and medium-sized production. The EOS's external protective structure takes up little space, making it ideal for placing on a workbench. The loading door opening and closing system is manual with a locking system, while the internal Z-axis is electric and is operated by a pushbutton. The large certified inspection window provides a complete view of the internal loading chamber and marking operations. EOS is a Class 1 laser safety device. EOS features a shutter housing: this CE-certified dual-channel mechanical shutter is a tool that ensures absolute safety for the laser marker user. During marking, the shutter remains in the open position, while it closes at the end of the operation, providing a safety lock condition. Shutter movement can be controlled by laser hardware/software or I/O signals. A certified, integrated safety sensor detects the position of the shutter blade in the housing, providing information that confirms the shutter position status. EOS is therefore an extremely reliable Class 1 safety laser marker. Loading area: 440x500 mm

IDEO Class 1 laser marking system Laser marking system with manually or pneumatically opening front door and large loading area, with integrated Z-axis as standard with a height of 800 mm. Designed for the marking of medium and large objects, IDEO is a complete, self-contained, flexible and easy-to-use marking system that is perfectly suited to simple or mass production line applications. It is a Class 1 safety device. Large windows on three sides of the door allow the operator to control laser marking activity, but it is also possible to integrate Automator's new SWYMTM (See What You Mark) vision system to monitor marking activity directly on the PC screen. The standard Z-axis is controlled by software, but an optional automatic Y-axis can also be integrated. IDEO can accommodate all Automator laser marking sources: NANOVISIII, belonging to Automator's new aWave product family with self-adjusting frequency; VISII, an innovative one-piece laser with YVO4 source in 10, 20, 30 and 40W OEM versions; GREENVISII, an innovative one-piece green laser in 3, 5 and 10W versions; FYBRAII, the powerful 21, 35 and 62, 82 and 100W active fibre lasers; MOPAII and MOPA3, lasers designed for "absolute black" marking or for making color on metals. Management software allows the operator to mark anything, even complex logos, serial numbers, and data matrices. IDEO requires a PC, not included by Automator. Loading area: 644X600 mm
